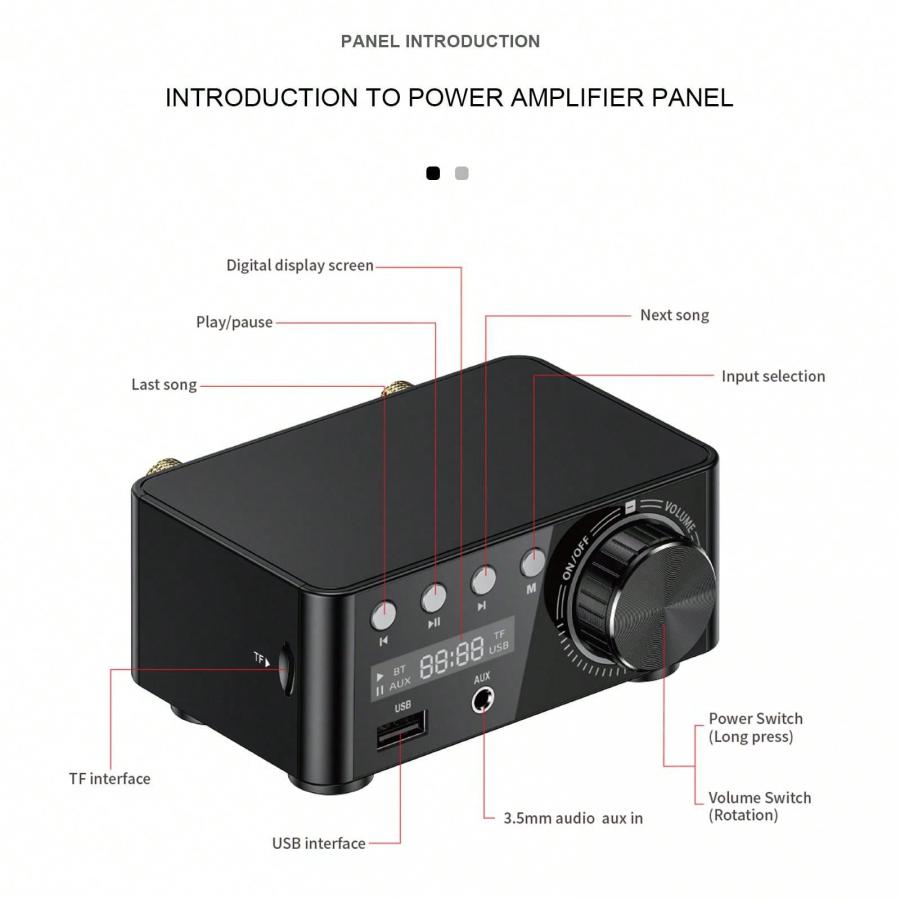

HiFi Mini Bluetooth 50 Digital Amplifier Stereo Audio Receiver

The amplifier can be connected to various devices including mobile phones computers tablets notebooks MP3s TVs and projectors with AV audio or 3.5mm headphone output holes It also supports a variety of mainstream Bluetooth devices for wireless transmission

Specifications:

• Product Name: Power Amplifier
• Output power: 50W+50W
• Power: DC12-24V
• Current: >3A
• Bluetooth: Bluetooth 5.0 at least 12 meters accessible
• Number of channels: 2.0 stereo
• Audio input: 3.5MM stereo input RCA stereo input TF U disk USB audio input

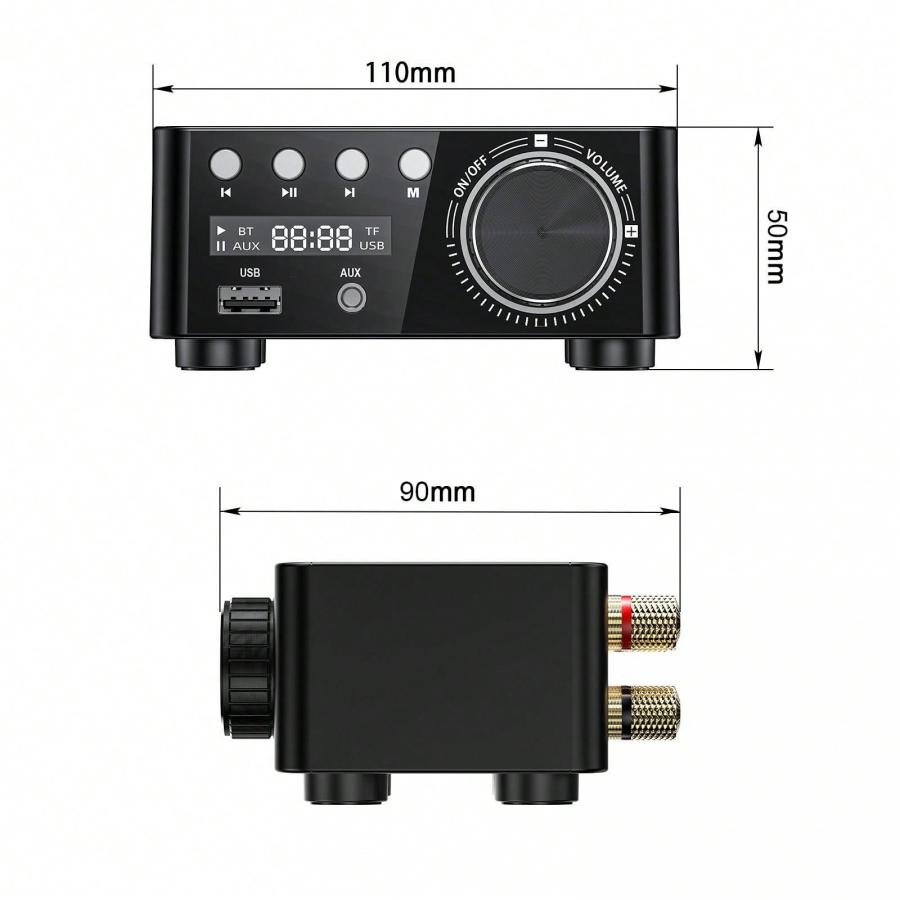

• Size: 110*90*50MM

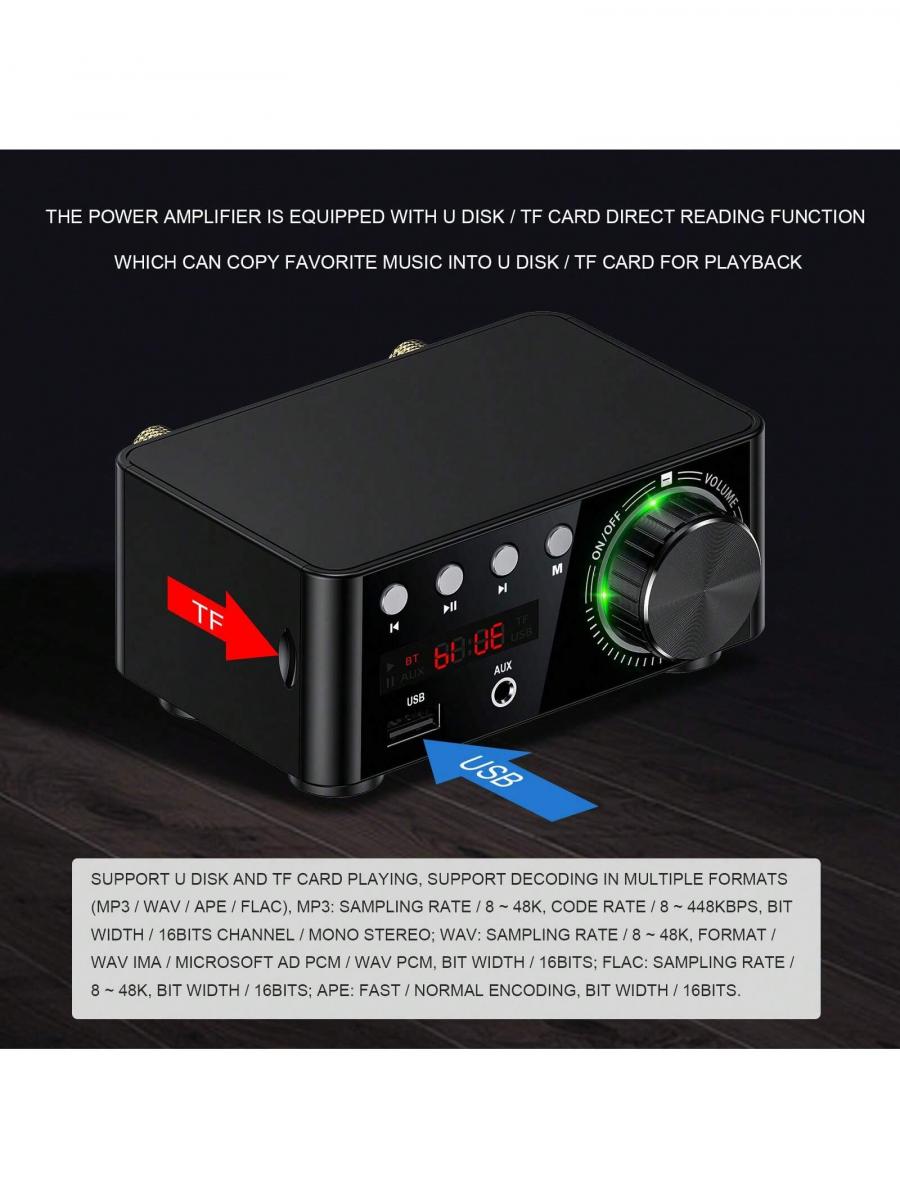

• Support U disk and TF card playback support multiple formats of decoding
• MP3: sample rate 8-48K bit rate 8-448Kbps bit width 16bits channel mono stereo
• WAV: sample rate 8-48K format WAV ima Microsoft AD PCM WAV PCM bit width 16bits
• FLAC: sampling rate 8-48K bit width 16bits
• APE: FAST/NORMAL encoding bit width 16 bits

Power and power:

• The power amplifier adopts TPA3116 chip actual output power can reach 50W per channel total 100W with 24V power supply
• Equipped with 12V5A power supply
• Output power is 30W*2 with 4 ohms if connected to 8 ohms the output is about 15W*2
• If more power is needed the power supply can be configured but should not exceed 24V
• Exceeding 24V may burn out the chip
• Power supply should not be too small as power equals voltage multiplied by current
• If current power is less than 50W there may be a power outage

Amplifier output:

• The power amplifier is a fixed-resistance power amplifier
• Supports 4/6/8/16-ohm passive audio/horn
• Cannot be connected to computer audio or other active audio
• Not suitable for passive subwoofer
• 4 pillars behind the amplifier are output interfaces for 3.5mm and other earphone plugs or lotus plugs

Car modification:

• Conventional car and motorcycle 12V batteries can be directly modified and supplied
• Large 24V batteries such as large trucks are not recommended
• The voltage may exceed 24V after starting the car unless reduced by other devices
• Long-term use may overheat the power amplifier and damage the chip
• If modifying to a car or using battery power must be limited to DC24V 5A
• Power amplifier plug size is 5.5*2.5MM or 5.5*2.1MM

Packaged Included:

• 1 Digital Power Amplifier no power supply

Note:

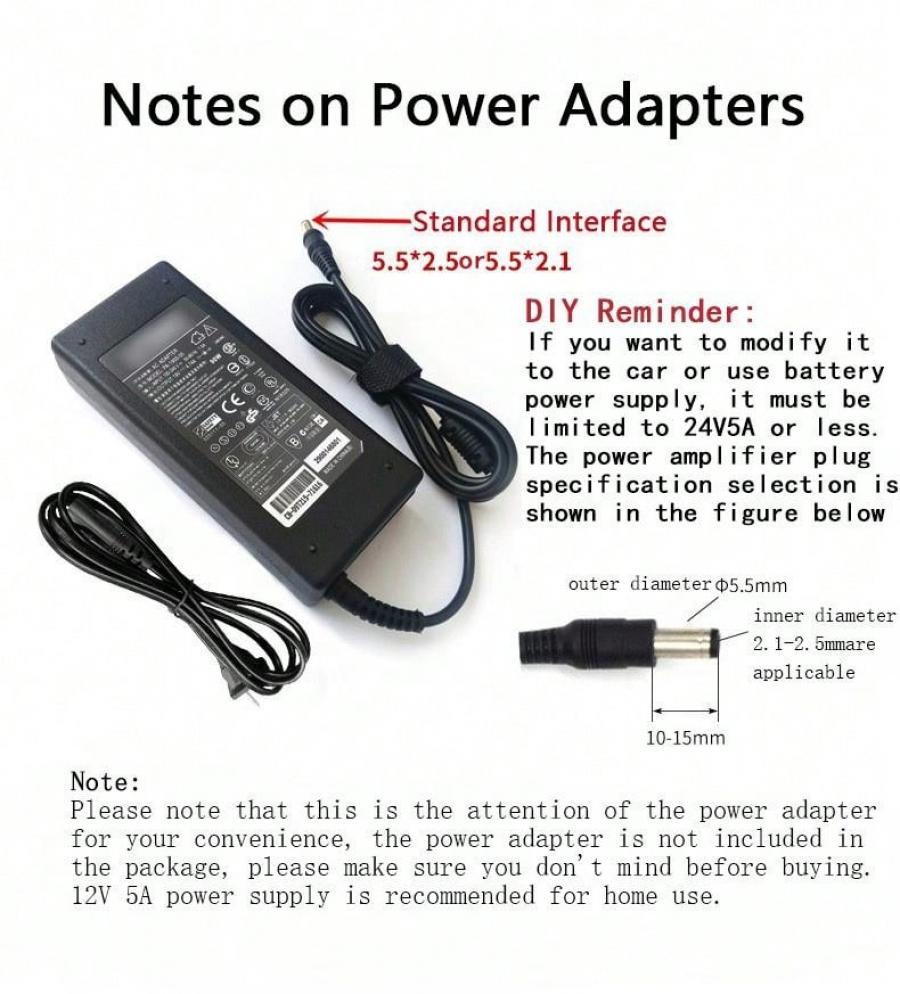

• DC 9V-24V power adapter interface 5.5*2.5mm or 5.5*2.1mm is recommended with 12V 5A power supply
• Power adapter is not included in the package please ensure you do not mind before buying
