Neoteck Bluetooth V5 Digital to Analog Converter Stereo Receiver

Overview

Digital to Analog Audio Converter is converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device Built-in Bluetooth receiver module supports mobile phone Bluetooth audio push Bluetooth 5.0 lossless transmission technology

Features

• Built-in Bluetooth V5.0 receiver module and supports mobile device Bluetooth connection
• Adopts the latest QCC3003 Bluetooth version 5.0 lossless transmission technology
• Digital to analog audio Converter Convert Coaxial Toslink Optical to Analog L/R Audio with 3.5mm Audio Output It can Connect to the Headphone Headphone Amplifier Function
• With IR wireless remote control easily adjust volume choose coaxial or toslink input Mute Power ON or OFF by using the IR wireless remote In order to received signal better please make sure the remote is facing the infrared IR indicator on the converter
• Supports 192kHz 2.4Bit sampling rate
• Aluminum metal case lightweight and compact Anti-interference function makes the sound pure and clear

Specification

• Bluetooth Version: 5.0 Version
• Bluetooth Decoding Mode: apt-X AAC SBC
• Optical Coaxial Support Audio Format: PCM
• Signal-to-Noise Ratio: 105DB
• Separating Degree(1KHZ): 94DB
• THD+N: -90DB
• Total Harmonic Distortion(THD): 10Hz~20KHz 0.25-0.065%
• Blocking Time: 0.577Fs
• Sampling Rate: 32~192 KHz
• Bit Rate: 16~24 Bit
• Input Electrical Level: ±0.3V
• Output Electrical Level: 3V
• Maximum Output Power: 0.3W
• Earphone Output Power: 0-250mW
• Output Impedance: 10 ohms
• Working Voltage: +5V
• Dimension: 4.54 x 2.45 x 0.76
• Weight: 180g

Please NOTE

• SET your TV's Audio Output to the PCM/LPCM Format
• This converter doesn't Support 5.1 Channel Such As Dolby and DTS
• PS4 Pro and PS4 Slim CANNOT use this converter as they haven't Optical fiber output interface
• For Samsung TV if there is no sound even you set the audio output to the PCM/LPCM format please turn ON the TV external speakers Menus-Sounds Speaker Setup HESB/external speaker-ON

Package Content

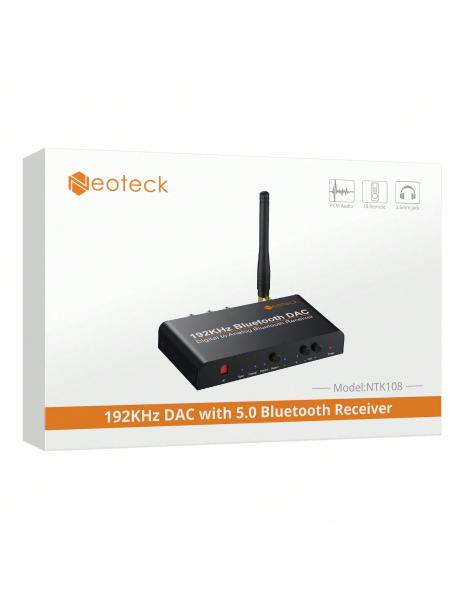

• 1 x 192kHz Bluetooth DAC Converter
• 1 x IR Remote Control
• 1 x 2m Toslink Cable
• 1 x 1m Coaxial Cable
• 1 x USB Cable
• 1 x User Manual
